Sinneslöschen hardware products are designed for industrial, scientific and OEM applications requiring documented interfaces, long product life and continued technical support. Current offerings include control processors, memory products, display hardware, peripheral controllers, development boards and system interconnect products.

Processors & Controllers

SL-9704 16-Bit Embedded Controller — 1997 — CURRENT. 16-bit, 20 MHz; integrated memory controller; timers; serial interfaces; programmable digital I/O; industrial-temperature options; external SSB support. Documents: DS-SL9704-01, RM-SL9704-01, AN-SL9704-03.

SL-9516 Industrial Control Processor — 1995 — CURRENT / LONG-TERM AVAILABILITY. 16-bit, 12/16 MHz; external memory; interrupts; timers; serial; extended-temperature operation. Documents: DS-SL9516-02, RM-SL9516-03, AN-SL9516-07.

SL-9821 High-Integration Control Processor — 1998 — NEW. 32-bit, 25 MHz; DMA; multichannel interrupts; serial/parallel interfaces; external SDRAM; SSB bridge-interface support; industrial-temperature options. Documents: DS-SL9821-01, RM-SL9821-01, AN-SL9821-01.

Memory Products

SL-9642 Industrial SRAM — 1996 — CURRENT. 256/512 KB; industrial temperature; parity-compatible; asynchronous interface. Documents: DS-SL9642-02, AN-SL9642-02.

SL-9718 Non-Volatile Memory Module — 1997 — CURRENT. 1/2/4 MB; parallel interface; write protect; power-loss retention; replaceable module. Documents: DS-SL9718-01, UM-SL9718-01.

SL-9808 Buffered Memory Controller — 1998 — NEW. SRAM/DRAM support; programmable wait states; parity; buffered address/data; refresh timing; diagnostics. Documents: DS-SL9808-01, AN-SL9808-01.

Display Products

VDP-7 Raster / Vector Display Processor — 1997 — CURRENT. 32-bit internal data path; hardware line and polygon generation; blit; clipping/scaling; cursor; LUT; external frame buffer; VGA timing and high-resolution technical modes. Applications include scientific visualization, workstations, instrumentation, simulation and industrial terminals. Documents: DS-VDP7-02, RM-VDP7-03, AN-VDP7-05, AN-VDP7-06.

VDP-6 Display Processor — 1993 — CURRENT / ESTABLISHED OEM PROGRAMS. Raster display processor with line acceleration, programmable frame buffer, cursor and indexed/direct-color operation. Documents: DS-VDP6-04, RM-VDP6-05, AN-VDP6-11.

SL-9726 Display Timing Controller — 1997 — CURRENT. Programmable horizontal/vertical timing; frame-buffer synchronization; clock control; interrupts; blanking. Documents: DS-SL9726-01, AN-SL9726-03.

Peripheral & Interface Products

SL-9611 Multi-Port Serial Controller — 1996 — CURRENT. Four/eight channels; RS-232/422/485; FIFOs; baud generation; interrupt/DMA support. Documents: DS-SL9611-03, RM-SL9611-02.

SL-9733 SCSI-2 Interface Controller — 1997 — CURRENT. SCSI-2; 8-bit asynchronous/synchronous; DMA; timing; multi-device support; loopback diagnostics. Documents: DS-SL9733-02, AN-SL9733-04.

SL-9816 PCI / SSB Peripheral Bridge — 1998 — NEW. PCI host interface; SSB-2/2E; selected SSB-1 through approved adapters; address translation; interrupt mapping; DMA; diagnostics; legacy timing. Documents: DS-SL9816-01, RM-SL9816-01, AN-SL9816-02, TB-98-011.

Development Hardware

• SL-9704 Development Board — development platform for processor evaluation and integration.

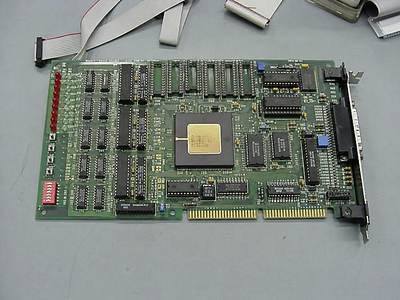

• VDP-7 Evaluation Board — evaluation hardware for VDP-7 technical display-system development.
• SL-9821 Development System — complete platform for SL-9821 processor evaluation and software development.
